2 Level Car Parking System

Simple Solution: Double Your Parking Capacity.

The P&P Engi-Tech 2 Level Stacker is the most popular and cost-effective solution for immediate space creation. It utilizes robust hydraulics to safely store two vehicles in a single parking slot, making it ideal for residential properties with minimal overhead clearance.

What is a 2-Level Stack Car Parking System?

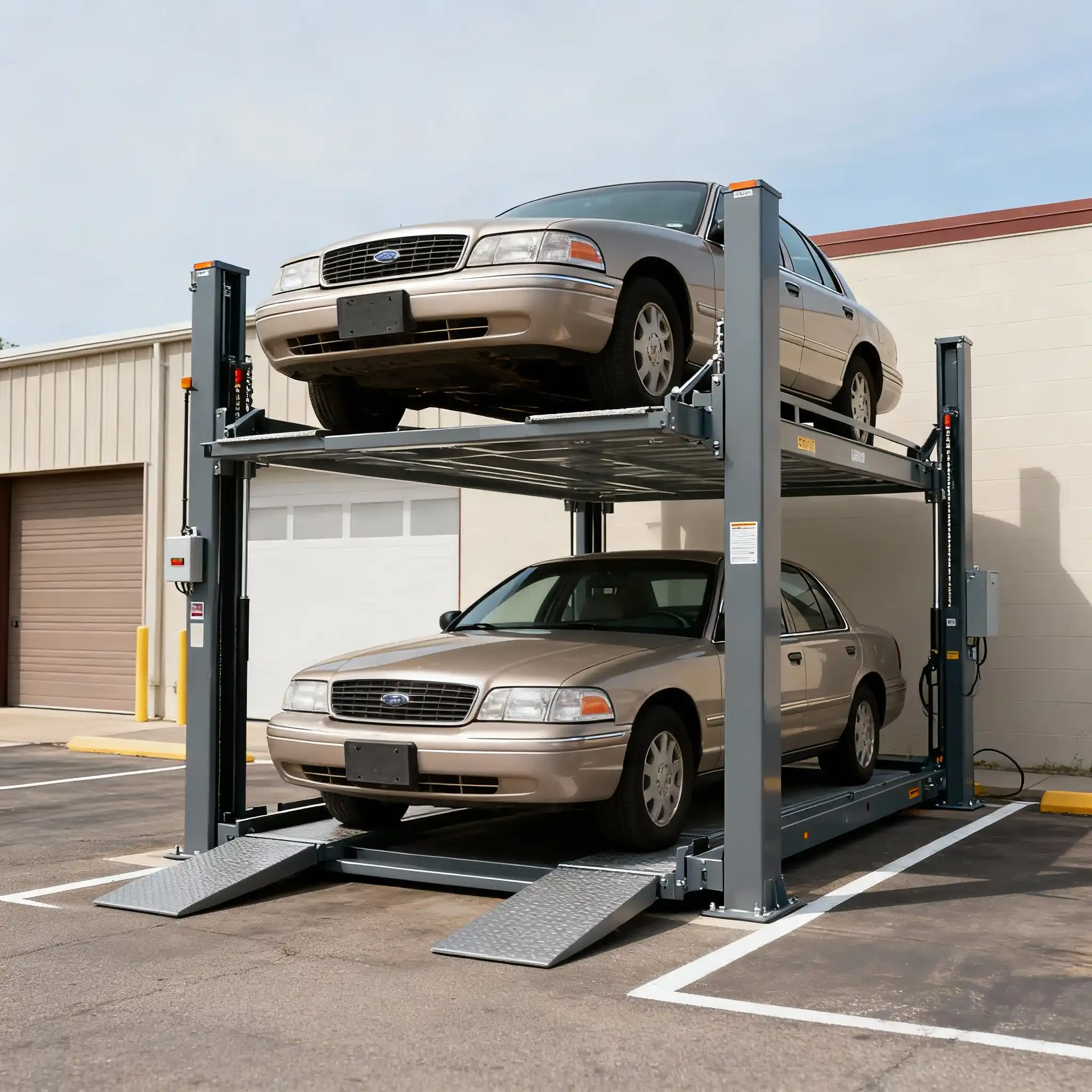

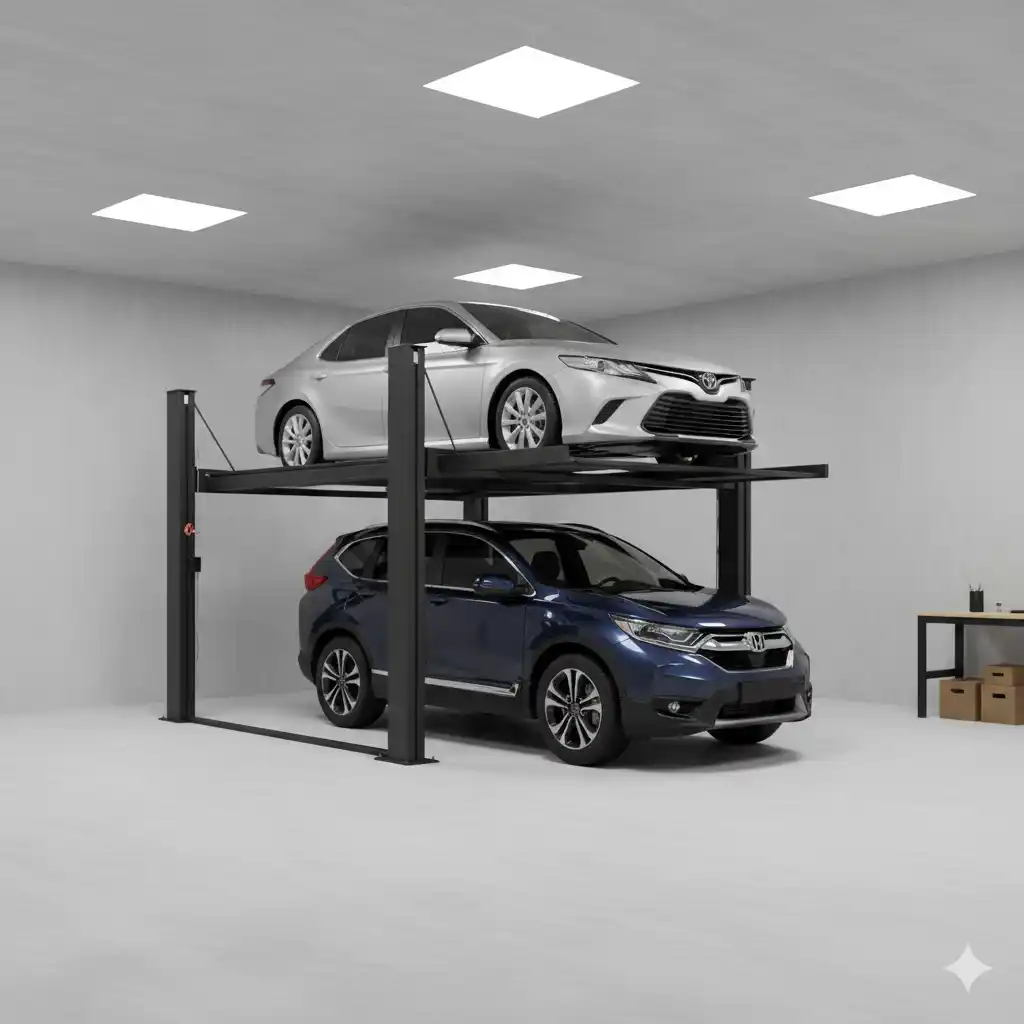

This hydraulic lift system allows you to park two vehicles in the footprint of one. It is a dependent (G+1) system, meaning the lower car must be removed before the upper car can be retrieved.

Key Specifications

Specification	Details
Lifting Capacity	2500 kg (per platform)
Lifting Height	2100 mm
Drive Mode	Hydraulic (Single Powerpack)
Platform Length	4500 mm – 5000 mm (Customizable)
Safety Features	Electromechanical Auto-Locks

2-Car Vertical Solution

Space Doubling Power

Instantly achieves two parking spaces in the footprint of one, maximizing capacity in limited areas.

Smooth Hydraulic Lift

Utilizes robust hydraulic cylinders for synchronized, stable, and whisper-quiet lifting and lowering.

Minimal Civil Work

Designed for straightforward surface mounting with minimal pit excavation required, simplifying installation.

User-Friendly Control

Simple key-switch operation ensures that only authorized personnel can control the system, preventing misuse.

Certified Safety Locks

Integrated electromechanical locks secure the upper platform, preventing movement and ensuring vehicle stability.

Anti-Slip Platform

Platforms are designed with a textured, skid-free surface to guarantee maximum tire grip during operation.

P&P Engi-Fab

Why Choose Us

Space Optimization Technology

Superior Build Quality & Durability

High-Safety Standards & Reliability

Customized Multi-Level Solutions

Low Maintenance Operation

Seamless Architectural Integration

Efficient Urban Parking Management

Engineered for Long-Term Value

Addressing Your Core System Concerns

Common Questions

"Is the 2-Level system dependent or independent?"

This is a dependent system. The lower car must be removed before the upper car can be lowered for access.
"What is the minimum ceiling height required?"

It varies by vehicle size, but typically a minimum of 3.3 to 3.6 meters (11 to 12 feet) is needed to store two average cars.
"Can the system accommodate an SUV?"

Yes. The system's 2500 kg capacity is suitable for most standard sedans and mid-size SUVs.
"What is the typical installation time?"

Once the site is ready, installation usually takes 3 to 5 days, depending on the site conditions and number of units.
